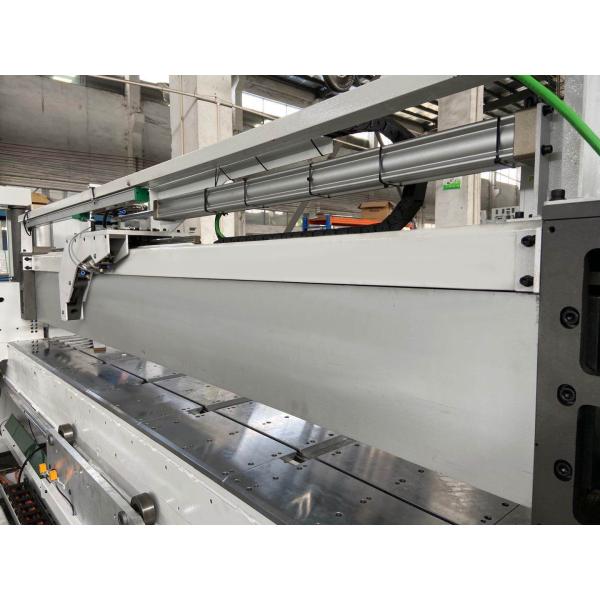

CNC Sizing Machine HP330C
Features
1. Heavy-duty frame, Unique internal structure, optimization software, top-brand spare parts, professional installation workers, intime- after-sale service, This machine surely can highly improve your working efficiency and precision, please contact me now to start your working upgrading!
2. Integrated touch screen industrial control computer control, easy to operate.
3. Optimize layout software (k): the computer automatically arranges the plate size, without manual input, plate programming optimization use, convenient and fast, improve work efficiency, easy production management.
Label printer: print bar code or two-dimensional code, transmit data through a computer, and connect with Bill splitting software.
Quick Detail
| Model | HP330C |
| Cutting length | 3250mm |
| cutting width | 3250mm |
| Maximum height of saw blade | 95mm Intelligent lifting |
| Main saw blade | 400x4.4x75x72T |
| Grooving saw blade | 160x4.4/5.4x45x24T |
| Forward speed of saw truck | 5-100m/min |
| Return speed of saw block | 0-100m/min |
| Forward speed of manipulator | 0-100m/min |
| Return speed of manipulator | 0-100m/min |
| Side pressure device | Pneumatic sidewall |
| Main saw shaft motor power | 15kw |
| Motor power of grooving saw shaft | 2.2kw |
| Saw servo motor | 1.5kw |
| Feeding servo motor | 1.5kw |
| Number of manipulators | 8pcs |
| High pressure fan of air bearing platform | 2.2kw |
| Size of rear feeding platform | - |
| Package size | 5400x1350x1900mm 4600x920x1000mm |
| Floor area of machinery | 6500x5500x1890mm |
| Weight list | About 4500kg |
| Minimum sheet size | 70x28mm |
| Total power | 22.5kw |
More detail
If want to know more about our products by video, please click the below link:
About our company
One-stop solution for interior furniture equipment and wooden door equipment
HOLD Machinery was founded in 2004, focusing on the development of a full range of furniture machinery equipment and wooden door machinery and equipment, providing furniture and wooden door enterprises with solutions for whole factory planning and automatical production lines, providing customers with excellent quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door enterprises in more than 40 countries and regions around the world and has won wide admiration from customers.
FAQ:
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has many options such as voltage, speed, function, and so on, So it's hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months. For the customized model, the delivery time is around 2~3 months. It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
