Technical info:
l Computerized intelligent panel cutting for efficient production
l Upgraded PC control system
l Independent motor drive for main saw (18.5kw)
l Independent motor drive for scoring saw (2.2kw)
l Servo-driven saw carriage
l Pneumatic dual side aligners (S)
l Quick blade change with pneumatic locking
l Industrial computer control
l Optimized nesting software, label printer
l Durable and sturdy dual-side horizontal guide rails
l Gear rack drive system requiring no lubrication
l High-efficiency AC servo motor drive
l Solid and reliable panel clamping mechanical arm
l Saw body: Heavy-duty construction, multiple annealing processes, durable and deformation-resistant
l Pressure beam: High-strength integral pressure beam ensures perfect clamping of the board, ensuring stability during cutting. Dual-end gear rack synchronized pressure beam ensures even pressure distribution on the board, with minimal opening for optimized dust extraction and perfect cutting results.
l Saw base: High-strength structural saw base with gear rack drive, no lubrication required. Manual adjustment for scoring saw, simple and fast operation.
Technical data:
| cutting length | 3180mm |
| cutting width | 3180mm |
| Max. height of saw blade | 100mmIntelligent lifting |
| Main saw blade | 400x4.4x75x72T |
| Groove saw blade | 160x4.4/5.4x45x24T |
| Blade carriage forward speed | 5-100m/min |
| Blade carriage backward speed | 0-100m/min |
| Gripper forward speed | 0-100m/min |
| Gripper backward speed | 0-100m/min |
| Side aligner | Pneumatic dual side aligners |
| Main saw shaft motor power | 18.5kw |
| Motor power of grooving saw shaft | 2.2kw |
| Saw servo motor | 1.8kw |
| Feeding servo motor | 1.8kw |
| Gripper quantity | 8pcs |
| High pressure fan of air floating platform | 2.2kw |
| Machine footprint | 6400x5400x2200mm |
| Package size | 5400x1350x2170mm 4600x920x1000mm |
| Weight | 5500kg |
| Total Power | 26.5KW |
| Minimum board size | 70x70mm |
Product Tags:
|
|

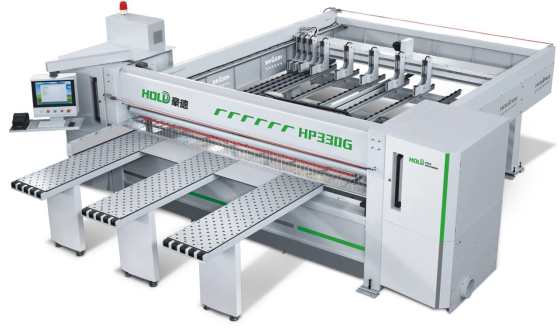

Front Feeding Panel Saw-HP330GK For Precise Cutting Images
|
